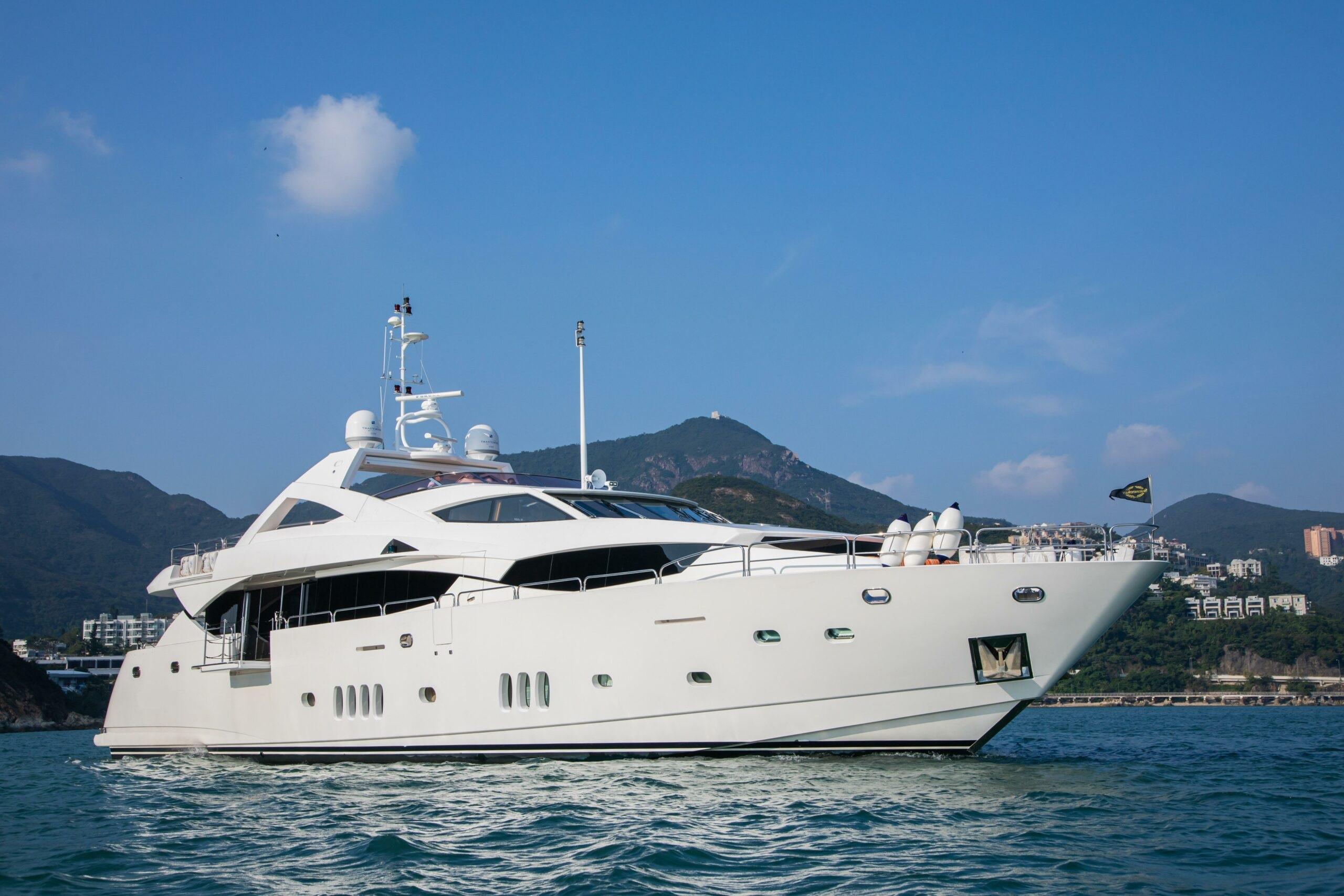

2009 Sunseeker 34M Yacht34m

Fitted with two MTU 12V 2000 M93 turbo charged and aftercooled marine diesel engines each 1815kW.

The engines are connected to independent ZF 4650A 3.475:1 ratio hydraulic reversing gearboxes and from there to propellers via a shaft fitted with mechanical type shaft seal.

Propulsion systems : 2 x MTU 12V 2000 M93 each 1815kW
Running Hours: Port 1501.4, Starboard 1502.5 (May 2023)
Generators : 2 x Kohler 60kW
Running hours Port 5998 Starboard 6529.2  (May 2023)
Power AC / DC : 12VDC, 24VDC, 420VAC 3Ph 50Hz
Maximum speed : 26kts
Cruising Speed : 18kts

Capacities
• Fuel : 19,500 litres in 3 tanks
• Fresh water : 4,000 litres

Ground gear : 2 x HHP anchors with galvanized chain
2 x Muir 4500 anchor windlass windlasses
Stabilization : Trac hydraulic active zero speed fins
Bow thruster : Trac
Stern thruster : Trac
Watermakers : 1 x Idromar 400l/hour
Air Conditioning : Candaria 4 x reciprocating compressors with soft
start and condensers.

Guests : 8 in 4 staterooms – 1 full beam master cabin on main
deck 1 full beam VIP on lower deck and 2 x doubles
on lower deck all ensuite
Crew : 5 in 1 single 2 doubles

Tenders : 1 – Novurania with inbd / outbd drive
Jetski : 1 - RTX XR5

Owner’s & Guest Accommodation

Twelve persons in the following:

• Full beam Owner’s suite at main deck forward with small study area. Ensuite with large bathtub/ jacuzzi, shower, his and hers sinks and in a separate room a w/c and hand basin.

• One full beam ensuite VIP cabin on lower deck with sofa, dressing table and walk-in wardrobe.

• Two ensuite twin bed guest rooms
• Lower deck guest accommodation is accessed from the central lobby with well finished staircase.

• Cabins are well fitted and have good natural light. Led lighting is provided.
• Bedrooms are carpeted and electric Roman blinds and blackout curtains

Crew Accommodation

Five crew in the following lower deck accommodation accessed from the galley:

• Captain’s ensuite cabin
• Two ensuite cabins accommodate the 4 crew members in bunk beds with basic storage and entertainment systems provided.

• Crew accommodation consists of a large crew mess on the lower deck and a large laundry with washing machine and tumble drier.

All spaces are fully air conditioned from the central sea water cooled semi hermetic compressors and chilled water and sea water pumps are located in the engine room. All rooms have individual fan coil controls.

The flybridge is accessed internally from the wheelhouse and externally from stairs on the main deck aft starboard side. The well equipped helm station with helm and navigator chairs is located forward starboard side.

A grp Targa carries the navigation mast and motorized extending canopies over the area forward and aft of the Targa.

A well fitted BBQ area is provided with dual electric grills, fridge and washing facility. The space is well fitted as an outdoor entertainment and sunbathing area. Sunbeds and seats are provided; all are fitted with good quality covers to protect them from atmospheric pollution.

Liferafts are mounted outboard of the port and starboard safety rail.

The entire deck is teak laid in good condition.

 Flybridge Navigation Equipment

• Hy Drive steering controls and steering wheel
• Engine controls including start and stop
• Engine analogue instruments – RPM oil and temperatures
• Rudder angle indication
• Trac thruster controls
• Furuno touch screen mfd
• Sound signal control
• Magnetic compass
• Retractable wing station (port side)

• 2 Furuno Navnet MFD’s
• 1 Unit Furno touch screen MFD
• GPS: 1 x Furuno GPS Navigator GP-150
• Magnetic Compass: Provided and in good order– without deviation card
• VHF: Simrad
• Autopilot: Simrad AP 60
• Satellite compass: Furuno
• Wind/ depth/ speed: Indicated on console MFDs
• Charts: Chart display available on two MFD one connected to
• emergency power supply plus Furuno touch screen

• Throttle and shift controls:
• Single lever for throttle/shift controls at the helm position.
• Engine status: Display provided at the console with other control parameters on console touch screen displays.
• Generator: Indication and control on touch screen

• Searchlight: 2x Searchlight control
• Stabilizers: Trac
• Thruster control: Trac
• Wiper control: Provided
• Fire detection: Tyco Minerva T2000
• Navigation lights: Controlled from mimic panel
