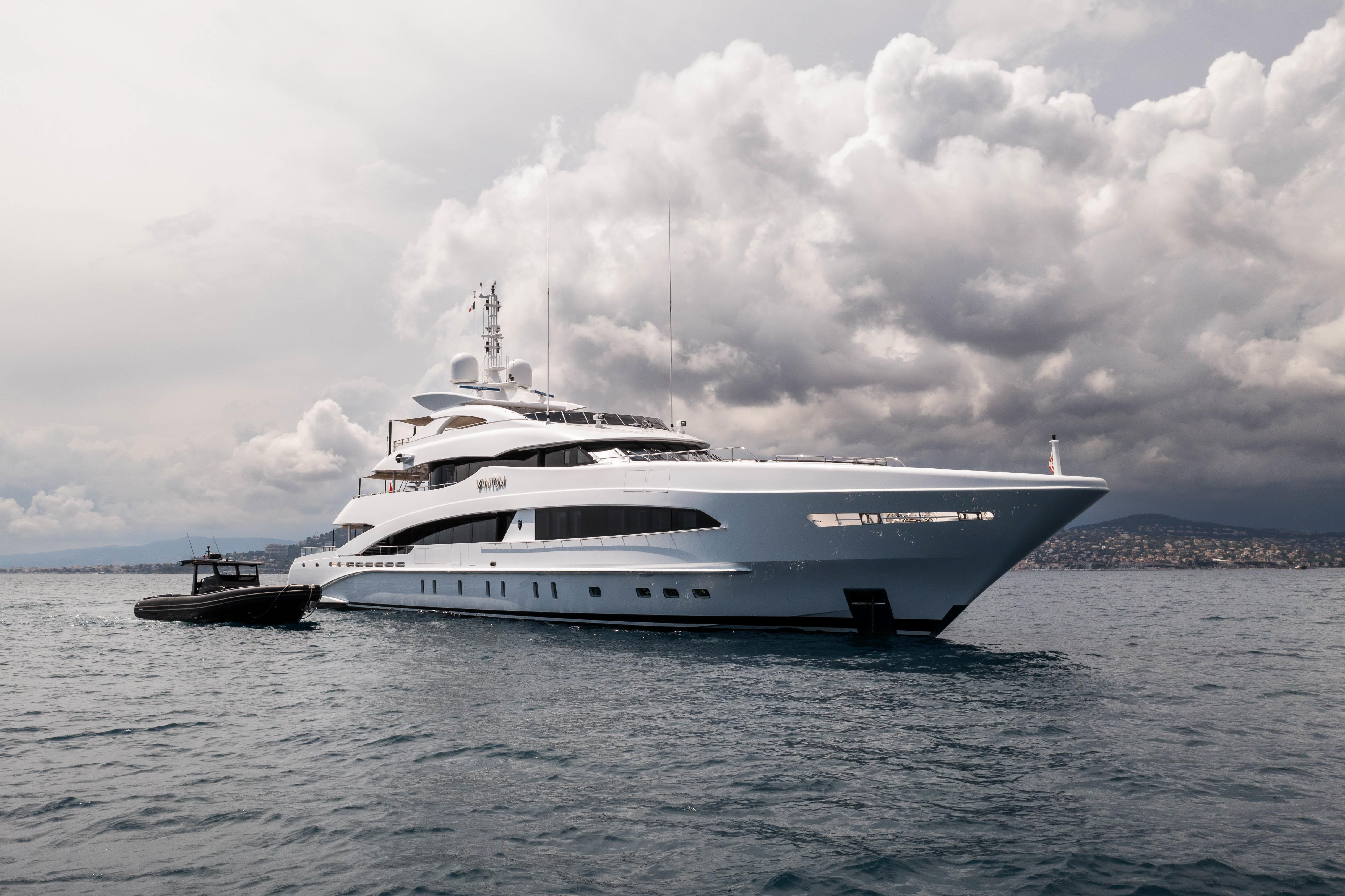

2018 Heesen 50 VAN TOM50m

ANCHOR WINCHES: 2x Maxwell 11000 VCW

AFT WARPING CAPSTANS: 2x Maxwell 8000

ANCHORS: 2x Pool Super High Holding Power anchors 260 kg

ANCHOR CHAINS: 2x 150m galvanized chain of 17.5mm diameter

PASSERELLE: Hydromar electric/hydraulic

SIDE BOARDING LADDER: Hydromar electric/hydraulic

SWIMMING LADDERS:

Automatic hydraulic swim ladder in the transom door

C-Quip carbon fibre manual foldable swimming ladder (can be used with the transom door

closed)

COVERS:

Dacron covers for all outside seats, wheelhouse windscreens, anchor winches, jacuzzi, sea-stair,

rescue boat, all exterior tables

AWNINGS:

Hand deployed sun awnings with white painted carbon poles on the main deck aft above the

sitting area, wheelhouse deck aft above the sitting area, wheelhouse deck forward above the

sitting area and sun bed, Sundeck aft above the sunbed area, 2x sundeck forward area, foredeck

above the windlass area.

BOAT CRANE: Hydromar, near the rescue boat (max 500 kg)

UNDERWATER LIGHTS: 8x Seavision LED

Dariel DT7 with inboard Yanmar 260HP 6BY, Alamarin Jet

Zodiac Classic Mark 2C HD with 25HP Yamaha rescue boat

2x Jetski

Fuel fill station installed in the tender garage

State of the art A/V system throughout the yacht with high-end speakers and amplifiers.

Simple but powerful control system with a user interface (ipad) that is quick to learn, simple to

operate and elegant to behold.

The main equipment center is designed to hold as much hardware as possible into a single

central location.

SeaTel 4004 auto tracking satellite TV reception system

13x digital satellite receivers

Crew call system

Icon Connect Server

Light management system to control lighting, curtains and blinds in all guest areas

Panasonic telephone/intercom system

Samsung / Elbex colour camera system with 6 cameras throughout

MAGNETIC COMPASS: C.Plath

GYRO COMPASS: C.Plath Navigat X

AUTOMATIC PILOT: C.Plath Navipilot 4000

ECHO SOUNDER: Furuno FE-700

RADARS: 2x Furuno X Band

TRANSPONDER: Tron 60S

DUAL ECDIS: Transas dual ECDIS chart system Navi-Sailor 4000

AIS: 1x Furuno FA-150

DGPS: 1x Furuno GP-150 dual system

NAVTEX: Furuno NX-700

LOG: Furuno Doppler DS-80

WIND INSTRUMENTS: Vaisala WXT520

SEARCHLIGHTS: 2x Sanshin

HORN: 1x Kahlenberg

SATCOM:

Sailor 6110 Mini C Inmarsat

Sailor 250 Inmarsat F Fleetbroadband

VHF:

2x Sailor 6222 VHF

2x portable VHF Motorola

SSB: Sailor 6300 MF/HF

BNWAS: Furuno BR-500

INTERNET: GSM/UMTS gateway with 4 cards

GALLEY

1x Miele Deep pan fryer

3x Miele induction cooking plate with 2 zones

1x Miele grill

1x Miele steam oven

1x Miele oven

1x Miele microwave

1x Miele drawer type plate warmer

1x Miele dishwasher

2x Foster Gastro refrigeratros 600 l

2x Foster Gastro freezer 600 l

1x Foster under counter refrigerator

PANTRY Main Deck

1x Eurocave wine cooler for 35 bottles

1x Miele dishwasher

2x Frigonautica refrigerator

1x Miele coffee machine

1x Hoshizaki icemaker

1x Quooker hot water tap

SALON Bar

1x Frigonaurica refrigerator

SKYLOUNGE Bar

1x Frigonautica refrigerator

SUN DECK

1x Frigonautica refrigerator

1x Hoshizaki icemaker

1x Atag teppan yaki

GARAGE

1x Liebherr freezer for garbage storage

CREW MESS

1x Foster under counter refrigerator

1x Miele microwave combi

1x Miele dishwasher

LAUNDRY

2x Miele washer

2x Miele dryers

Accommodation for up to 12 guests in 6 cabins and up to 9 crew

GUEST CABINS:

1x Master cabin

1x VIP cabin

2x Double cabins

2x Twin cabins

CREW CABINS:

1x Captain cabin

4x Crew cabins

Gearboxes:

ZF 9055A

Steering:

Litton Marine Systems electrically controlled hydraulic steering system

Five blade Shaffran bronze fixed pitch

Stabilizers:

Naiad Dynamics Zero Speed

Generators:

2x 120 kW (158 Hp) John Deere 6068AFM85

Port Generator: 3056
Starboard Generator: 3065

Electricity:

24VDC - 230V/400VAC, with ships monitoring system

Chargers:

1x 24V 75A for service batteries in the engine room

2x 24V 25A for start batteries in the engine room

1x 24V 50A for the emergency battery in wheelhouse

1x 24V 15A for the emergency GMDSS battery in wheelhouse

Shore power:

2x 3-phase 180-540V/50/60Hz 100A Marinco

Eekels Marpower frequency converter SPC II Hybrid 40-70Hz input

Batteries:

2x 24V 100Ah main engine and gens starting batteries

1x 24V 600Ah service batteries

1x 24V 600Ah emergency service batteries

1x 24V 55Ah emergency GMDSS batteries

Air Conditioning:

Heinen & Hopman, including fresh air supply

OTHER MACHINERY

WATER MAKER: Idromar dublex reverse osmosis desalination system, 2x 12,000 l/day

WATER SYSTEM: 2x Pumps, Idromar freshwater softener, silver ion sterilizer, charcoal filter, UV

cool water. 2x 200 l electric boilers.

FUEL CENTRIFUGE: Westfalia Separator Mineraloil GmbH

FUEL SEPARATOR: Westfalia Separator Mineraloil GmbH

BOW THRUSTER: 90 kW HRP 1001 Thruster

BILGE WATER SEPARATOR: Rossmark

SOOT FILTER: Both generator exhausts have a soot filter system NPS Zero Soot

LIFERAFT: 4x 12-persons Zodiac liferaft

LIFEJACKETS: 24x inflatable lifejackets, 4x rigid life jackets for kids

EPIRB: Jotron EPIRB approved by class

SART: 2x Jotron SART approved by class

FIRE FIGHTING:

Electric bilge pump / electric firefighting pump / emergency diesel driven bilge-firefighting

pump

Eltek fire alarm system throughout

Fire extinguishing system in the engine room with Novac 1230 gas

Dry pipe sprinkler system in the tender garage

CO2 fire fighting system in the galley extraction duct

Fire extinguishers throughout

2x Firemen’s outfits

ALARM SYSTEM: General alarm system integrated into the ships monitoring system
